1500W YXHT-2 FM Transmitter - YXHT-2 FM Transmitter - YXHT

1500W YXHT-2 FM Transmitter
1 1500W YXHT-2 FM Transmitter complete equipments of radio station package + Antenna + cable
2 Shipping Method: DHL, FedEx, UPS, EMS, By Sea, By Air
3 Payment: TT(Bank Transfer), Western Union, Paypal, Payoneer
Order
Product detailsTechnical manual
1500W YXHT-2 FM Transmitter
Three Equipments Package, please click the picture below:

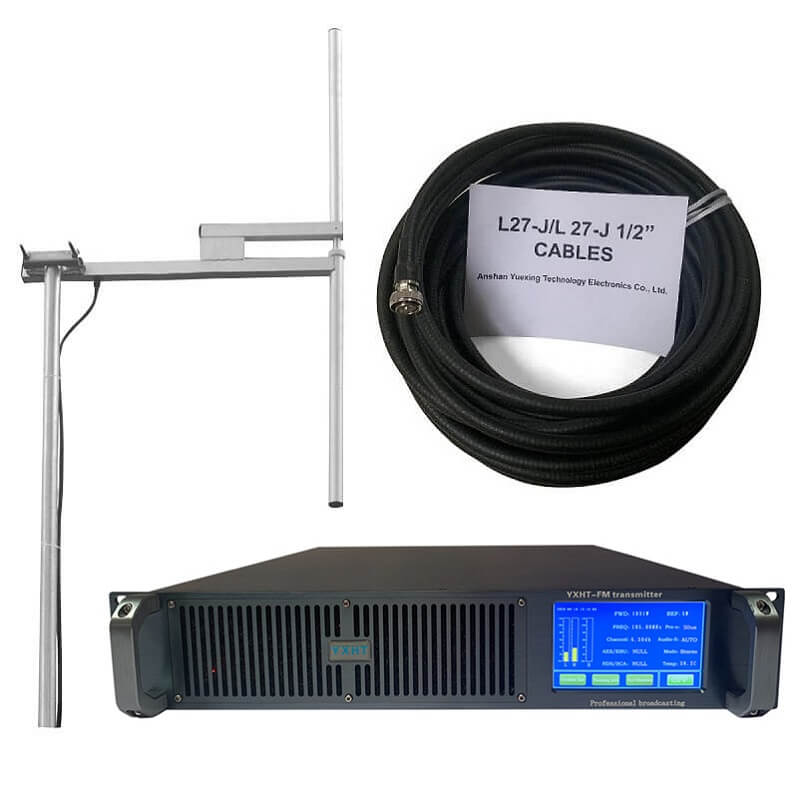

1500W FM Transmitter + 1-Bay Antenna + Cables with connector.
Product Description

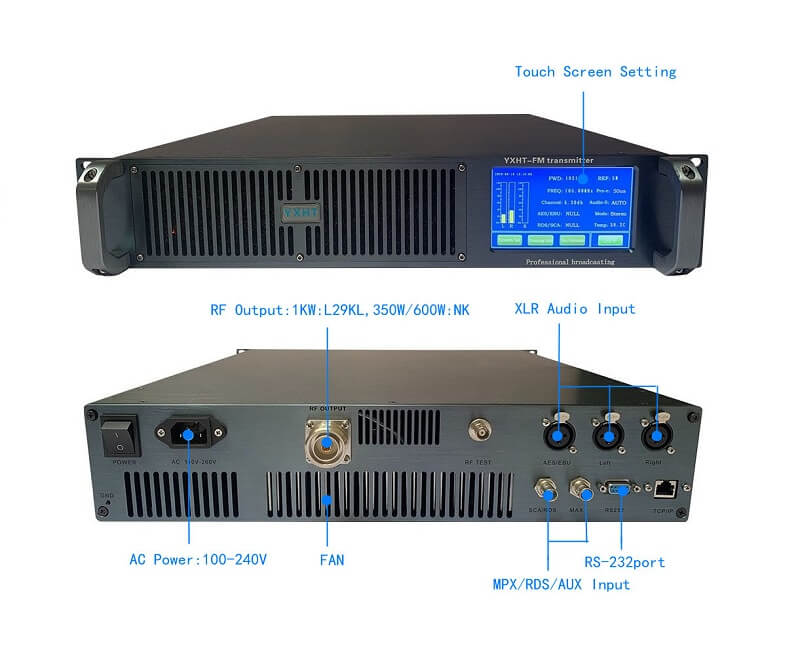

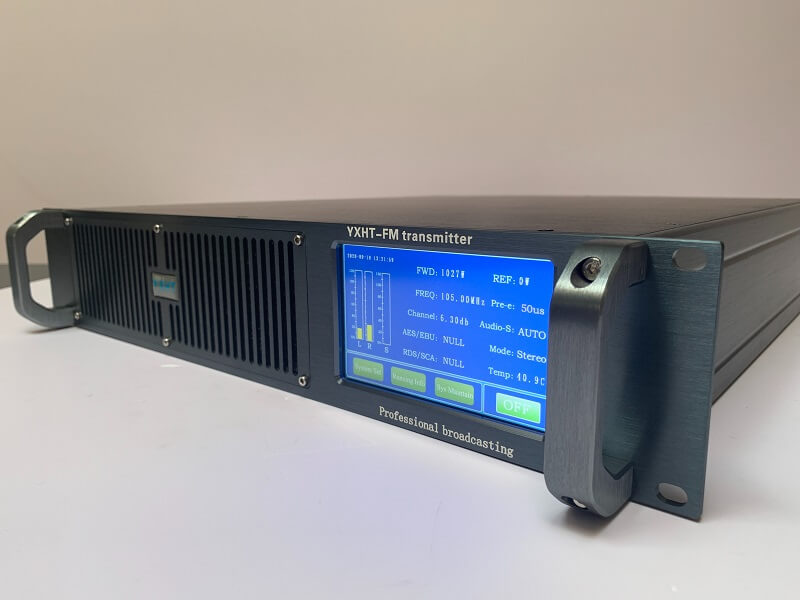

(1) 1500W FM Transmitter
Warranty:The warranty of all transmitters in our factory is 6 years.

Features:

· Hearing similar to CD
· All-digital technologies DSP+DDS
· Built-in audio signal limiter
· Analog and Digital (AES/EBU) audio signal input directly.
· AGC circuit can keep the Output Power stability.
· Big LCD display all the parameters in real time.
· Communication Interface by RS232 for remote
· Five kinds of protections for the security
· Compact structure

FM Broadcast Transmitter
· The transmitter implements digital FM modulator module as its core,combining with RF power amplifier.In the transmitter,DSP&DDS are used to execute all-digital processing,such as digital filtering,pre-emphasis,the generation of pilot frequency,stereo coding and FM modulating.A AGC circuit is used to keep the set power stable.
· High performance and very good reliability has been proved by the large usage of YXHT-1500C transmitters.Also it is low cost and small size.

FREQUENTLY APPLICABLE USES:
1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations

OUTSTANDING FEATURES:
1) OVERHEAT PROTECTION: The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range.
2) OVER SWR PROTECTION: SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile.
3) FAN ERROR ALARM When the fan stops running, the alarm message will be displayed on the screen.
4) ADJUSTABLE POWER OUTPUT The RF out of this 1500w FM transmitter is continuously adjustable from 0-1500 watt at the stepping of 0.1watt, which means you can tune it to 50w...100w...500w...1000w,1500w with just one transmitter you’ll get multiple modes of outputs and easy to tune as per your needs

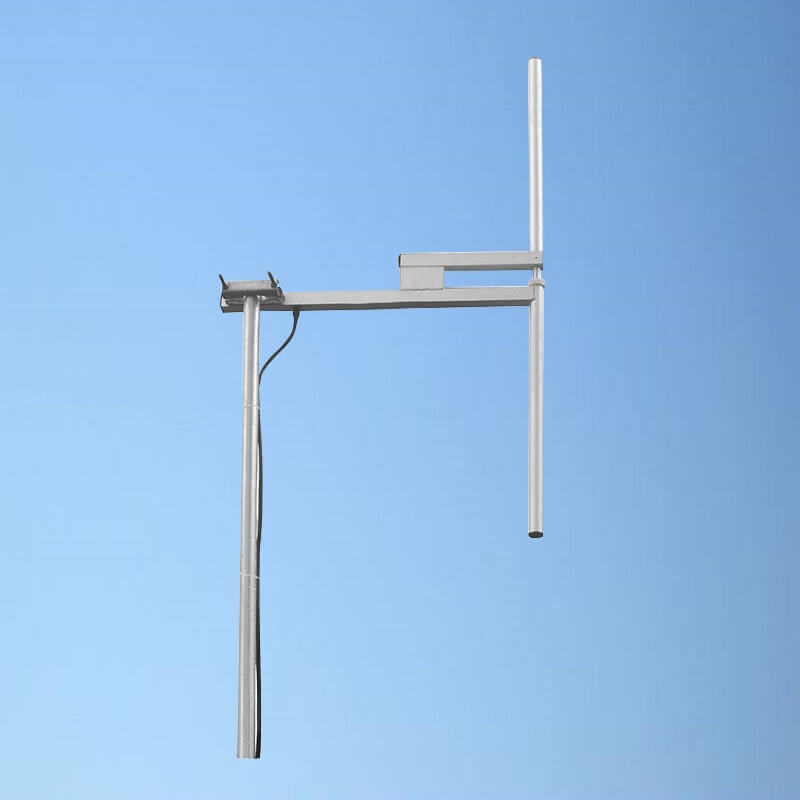

(2)  1-Bay Dipole Antenna

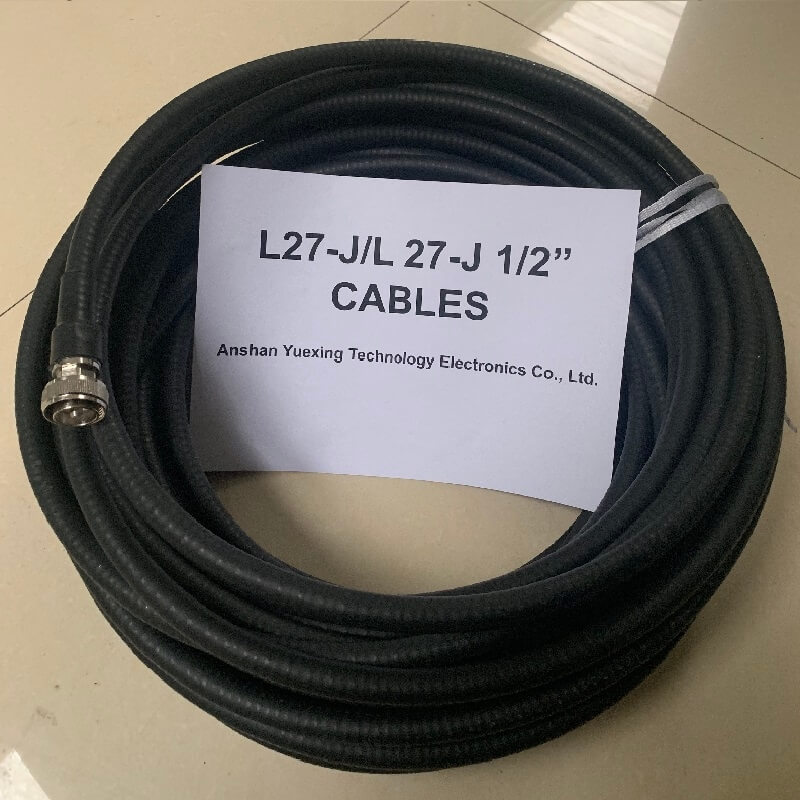

(3)  1/2" Feeder Cables with Connectors


Product display
