1000W YXHT-2 FM Transmitter

1.1000W YXHT-2 FM Transmitter complete equipments of radio station package + Antenna + cable
2.Shipping Method: DHL, FedEx, UPS, EMS, By Sea, By Air
3.Payment: TT(Bank Transfer), Western Union, Paypal, Payoneer
Order
Product detailsTechnical manual
1000W YXHT-2 FM Transmitter
Equipments included
1.Nominal emission frequency 87MHz~108MHz (other frequencies can be customized), stepping 10kHz
2.Carrier frequency tolerance ±200Hz
3.Output power 0~1000W continuously adjustable
4.Output power tolerance±1dB
5.Output impedance 50Ω
6.RF output connector 7/16”or7/8”
7.Residual wave radiation <-70dB
8.Parasitic amplitude modulation noise<-50dB
9.Pilot frequency deviation ±0.1Hz
10.38KHz residual component in the S signal< -50dB
11.100% modulation frequency offset±75KHz (maximum modulation frequency offset 112.5KHz)
12.Audio pre-emphasis 0μs/25μs/ 50μs/75μs optional
13.Distortion <0.05% (30Hz ~ 15000Hz, 100% modulation)
14.Frequency response ±0.1dB (no emphasis, no de-emphasis); ±0.2dB (emphasis, de-emphasis)
15.Signal to noise ratio ≥88dB (1kHz, 100% modulation)
16.Stereo resolution ≥70dB (L→R, R→L)
17.Left and right channel level difference <0.05dB (100% modulation)
18.Analog audio input-12dBm ~ +8dBm
19.Analog audio input impedance 600Ω balance
20.AES input impedance 110Ω balance
21.AES input level0.2~10Vpp
22.AES sampling rate30kHz ~ 96kHz
23.Audio Level Gain -15dB~+15dB Step 0.1dB
24. Heat dissipation method Forced convection
25. Power supply voltage 100VAC~265VAC/ 47Hz~63Hz
26.Chassis Standard 19"
27.Operating environment temperature-10 ° C ~ +45 ° C
28.Weight 15kg
29.Size 460mm*480mm*88mm
Three Equipments Package, please click the picture below:

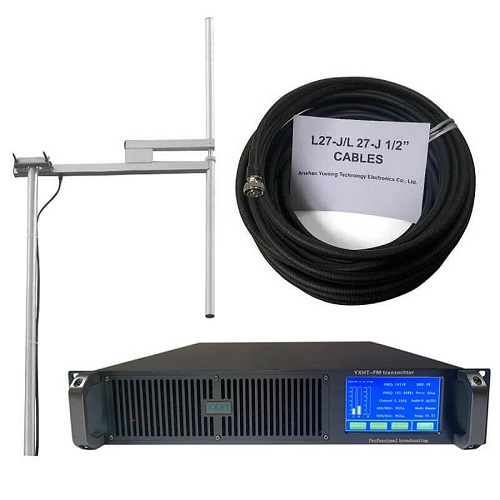

1000W FM Transmitter + 1-Bay Antenna + Cables with connector.
Product Description
(1) 1000W FM Transmitter
Warranty:The warranty of all transmitters in our factory is 6 years.

Features:

· Hearing similar to CD
· All-digital technologies DSP+DDS
· Built-in audio signal limiter
· Analog and Digital (AES/EBU) audio signal input directly.
· AGC circuit can keep the Output Power stability.
· Big LCD display all the parameters in real time.
· Communication Interface by RS232 for remote
· Five kinds of protections for the security
· Compact structure

FM Broadcast Transmitter
· The transmitter implements digital FM modulator module as its core,combining with RF power amplifier.In the transmitter,DSP&DDS are used to execute all-digital processing,such as digital filtering,pre-emphasis,the generation of pilot frequency,stereo coding and FM modulating.A AGC circuit is used to keep the set power stable.
· High performance and very good reliability has been proved by the large usage of YXHT-1000C transmitters.Also it is low cost and small size.

FREQUENTLY APPLICABLE USES:
1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations

OUTSTANDING FEATURES:
1) OVERHEAT PROTECTION: The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range.
2) OVER SWR PROTECTION: SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile.
3) FAN ERROR ALARM When the fan stops running, the alarm message will be displayed on the screen.
4) ADJUSTABLE POWER OUTPUT The RF out of this 1000w FM transmitter is continuously adjustable from 0-1000 watt at the stepping of 0.1watt, which means you can tune it to 50w...100w...500w...1000w, with just one transmitter you’ll get multiple modes of outputs and easy to tune as per your needs



(2)  1-Bay Dipole Antenna


(3)  1/2" Feeder Cables with Connectors
