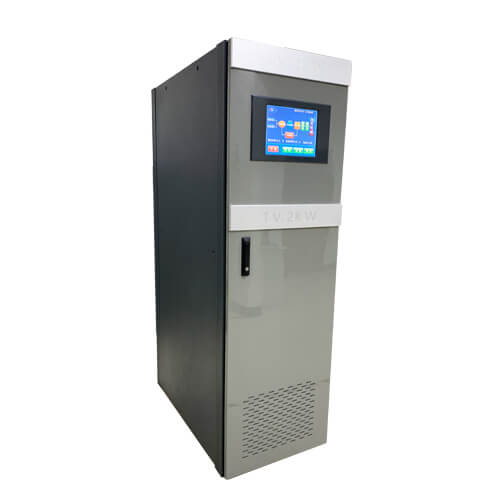

2KW Digital TV Transmitter



Order
Product detailsTechnical manual
2KW Digital TV Transmitter
Technical Specifications
1. Working frequency: VHF/UHF
2. Channel bandwidth: 8MH
3. Output power: 2KW
4. Output impedance: 50Ω
5. Output interface: Φ40
6. Output load return loss:Normal operation: -32dB, Allowed operation: -20dB
7. Power input level: 0dBm
8. Amplifier input impedance: 50Ω
9. Amplifier input interface: L16
10.Useless transmission: ≤-60dB
11.Band fluctuations:±0.5dB
12.Band shoulder:better than 36dB
13.MER: better than 30dB
14.Size: 1860mm×1000mm×586mm
15.Weight: 235KG

Quick Details

Place of Origin : China (Mainland)

Brand Name : YXHT

Model Number : YXHT-2KW

Supported Standards DVB-T,DVB-T2,DVB-H,DTMB,ATSC,ISDB-T

Packaging & Delivery

Packaging Details  wooden boxes

Port  Dalian

Lead Time :30 days

Professional TV Transmitter Equipment

2KW DVB-T transmitter VHF/UHF,high performance,Module design,MCU controlled,RS485/232 interface,color LCD with touch panel,low price.

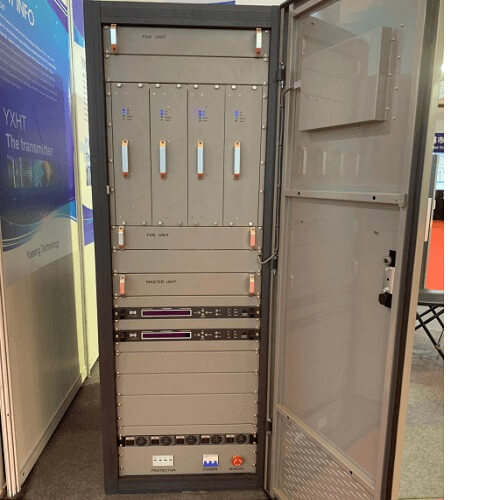

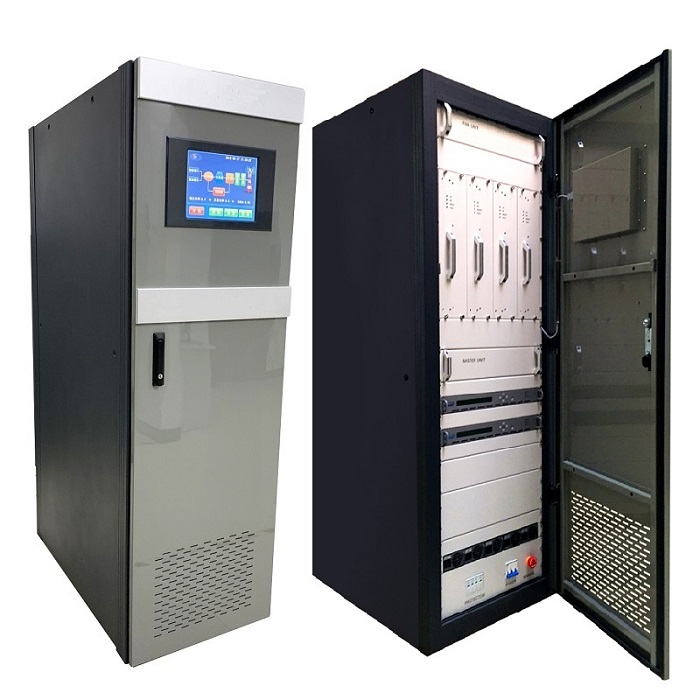

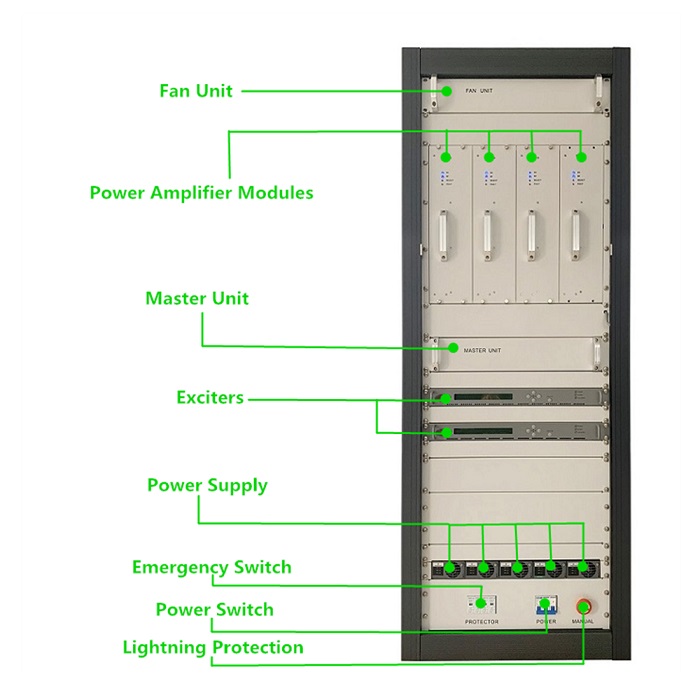

Product display
