5KW TV Transmitter
Technical Specifications
Technical Specifications
1. Working frequency: UHF 13~48 Channel Arbitrary choice
2. Output power: 0~ 5KW
3. Output impedance: 50Ω
4. Inter-modulation distortion: ≤-50dB
5. Useless transmission:In adjacent channel ≤-40dB;Out adjacent channel ≤-60dB
6. RF output interface: Φ40
7. Power supply: Three-phase 380V
8. Shape size: 105cm X57cmX156cm
9. Weight:200KG
Image performance
1. Video frequency input level:1VP-P positive polarity
2. Video frequency input impedance: 75Ω
3. DG: ±5%
4. DP:±5°
5. Luminance nonlinear: ≤10%
Sound performance
1.Audio input level:0dBm±6dB
2.Audio input impedance:10KΩ (imbalance), 600Ω (Balance)
3.Maximum frequency deviation:±50KHz
4.Harmonic distortion:≤1%
5.Signal-to -clutter: ≥60dB
6. The amplitude frequency characteristics:±1dB

Description

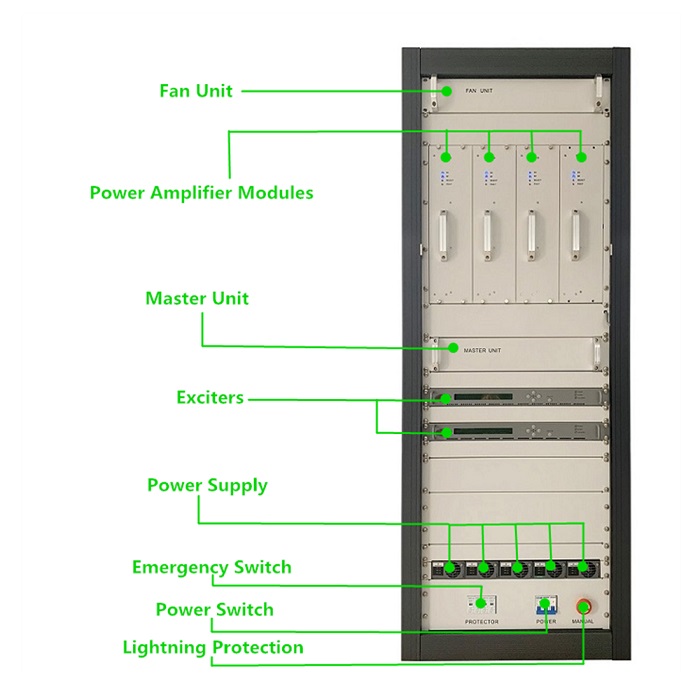

This product is the all solid-state Single-channel TV Transmitter, it adopts professional TV exciter, and it can use the single/duel exciter configuration, switching automatically.

This transmitter has a variety of linear and non-linear pre-correction function, carrier frequency offset, and precision bias (with external precision reference source) function.

It can prefabricate and control the half-power output, and it has remote control telemetry interface.

The power amplifier used LDMOS FET, the analog and digital are both compatible, and it used high-quality switch parallel power

The power amplifier and power supply are both used hot-plug devices

The power loss and standing wave of the one-time synthesis power combiner is small.

The module of power amplifier display the working parameters in real-time.

The whole machine has the protection of over-current, over temperature, over power and over-standing wave ratio.

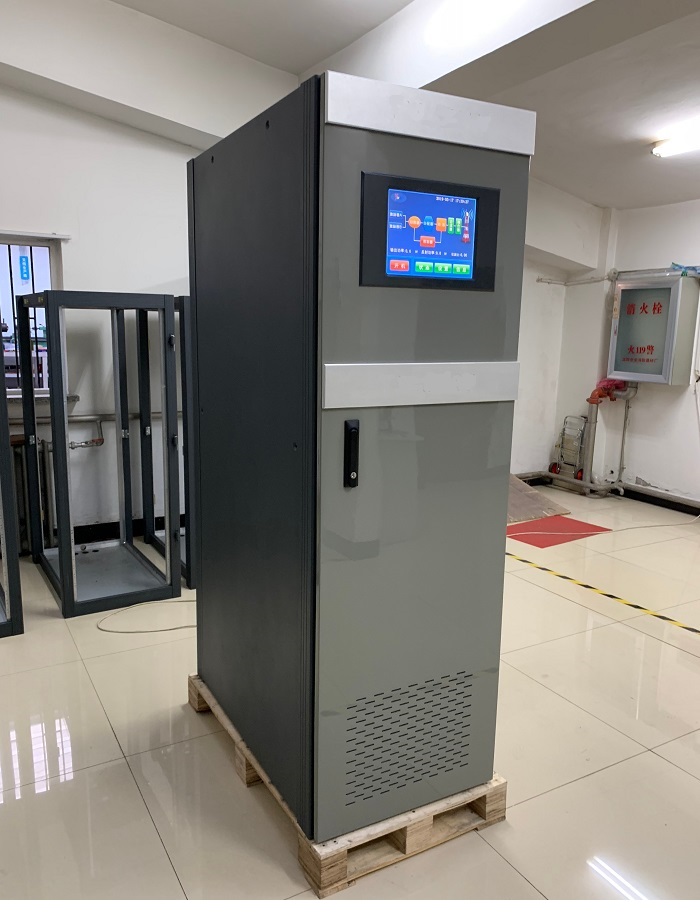

The master touch screen displays the working parameters of the whole machine and the module of power amplifier (PA) in real-time.

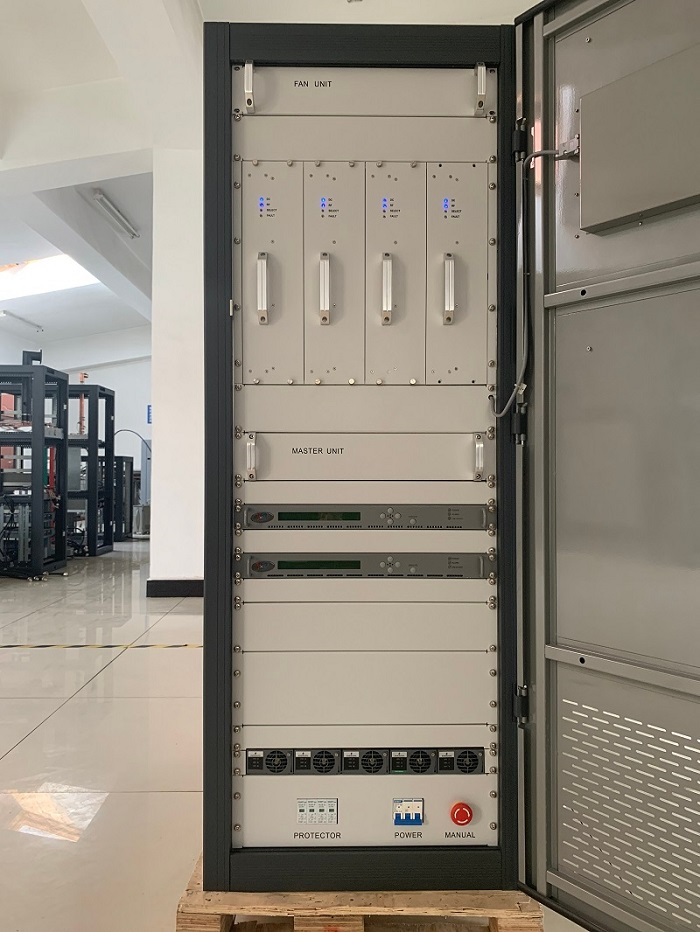

The 5KW transmitter is installed in one 19inch chassis; it’s suitable for medium or small TV station.

Features

The whole machine is single-channel, image with audio together.

The management and monitoring are intelligent and on network, it has the external PC interface.

It has the technical data detection, monitoring systems and full-featured computer control software with auto-diagnostic function. All technical parameters can be read through the LCD display panel.

Comprehensive protection measures can reduce the damage of equipments. This machine has protection about no video; VSWR is too large, overheating, over-stimulus, missing phase protection and lightning protection. The switch has protection about overvoltage, over current, under voltage, over temperature, short circuit and lightning protection.

All power supplies are switching power supplies; high efficiency, excellent regulator range, strong adaptable from the change of the external voltage.

It adopts modular design concept.
Hot-pluggable design: power amplifier and switching power are supporting the Hot-plug, it’s easy to debug and maintenance; improve the reliability.

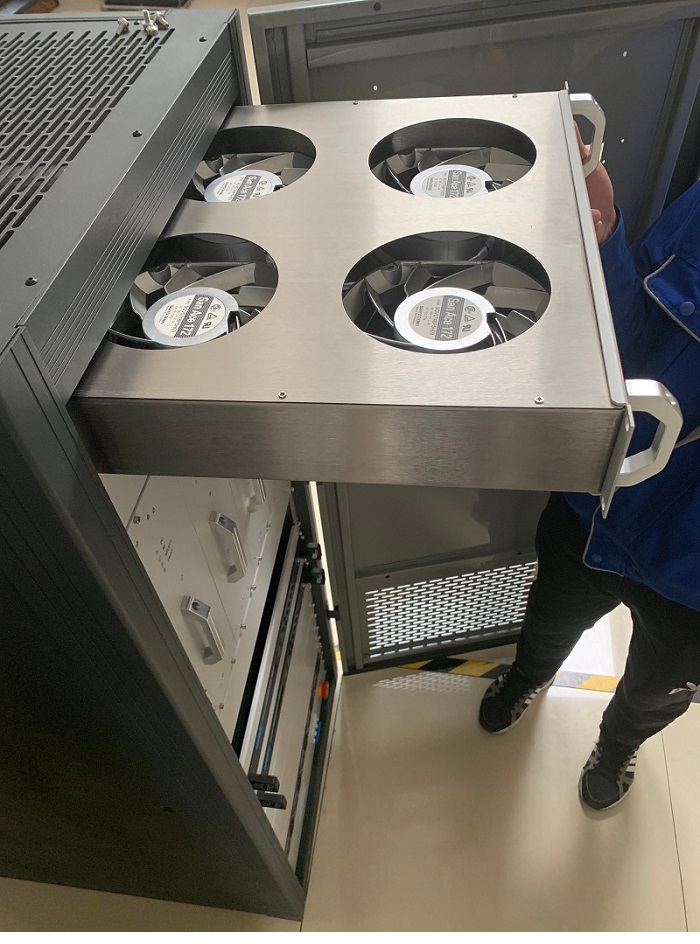

The fan is built-in the chassis, the transmitter has a compact structure and a beautiful shape.

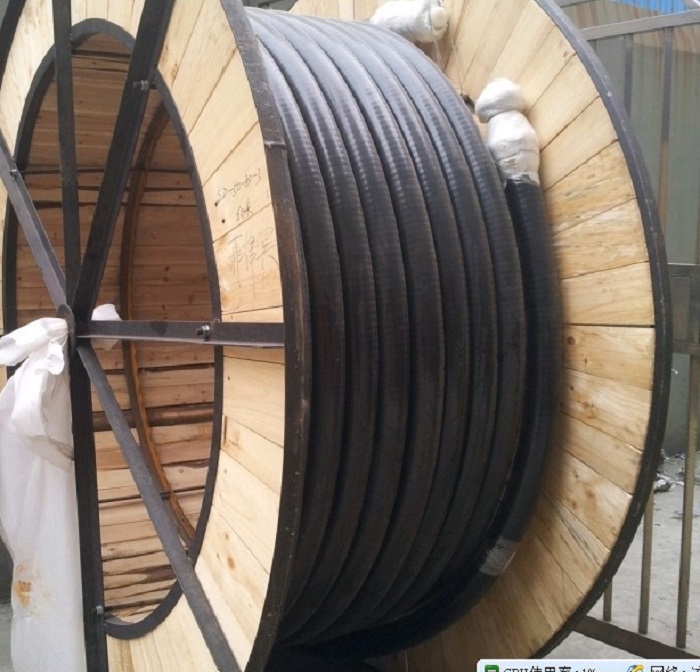

3-1/8” Feeder Cables with Connectors:

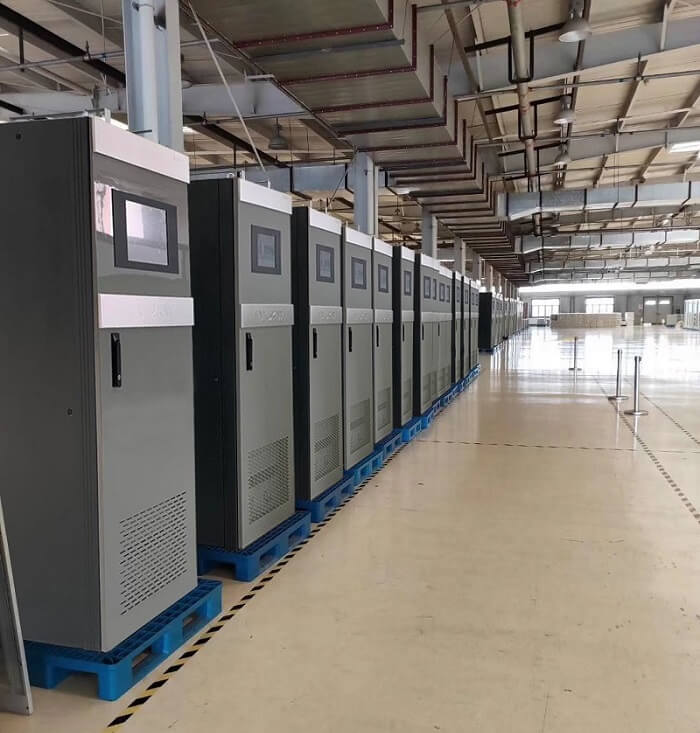

Product display
