UHF Slot TV antenna

More prices for this Antenna(not include shipping cost):

UHF Slot-4 TV Antenna

UHF Slot-6 TV Antenna

UHF Slot-8 TV Antenna

UHF Slot-12 TV Antenna

UHF Slot-16 TV Antenna

Order
Product detailsTechnical manual
UHF Slot TV antenna



Overview

Quick Details

Place of Origin:China (Mainland)

Brand Name:YXHT

Model Number:UHF-S

Type of Antenna::UHF TV Antenna

Frequency::470-860MHz

Input impedance:50Ω

Input interface:IF45/70/110-50K

Maximum power capacity:1KW/5KW/10KW

VSWR(Designated frequency):<1.10

Polarization ways:Circular polarization

Shape Size::2000mm*330mm*340mm

Weight::40~80KG

Certificate::ISO9001:2008, BV, SGS

Features:

Frequency range 470-860MHz.
High-gain design 13dBd-18dBd.
Circular polarization suitable for high building concentration area coverage.
Compatible mobile digital TV application.
Omni-directional radiation field, it can be directional radiation according to requirements.
Adopting quality electro silvering copper to reduce high-frequency loss.
Adopting anti-aging high-strength glass fiber reinforced plastics cover for tight seal and sheltering from rain and snow.
To conduct zero point padding and lobe downwardness to achieve the best coverage effect.

It occupies little space; flexible installation is suitable for spanning over the top of the tower or the side of the tower.

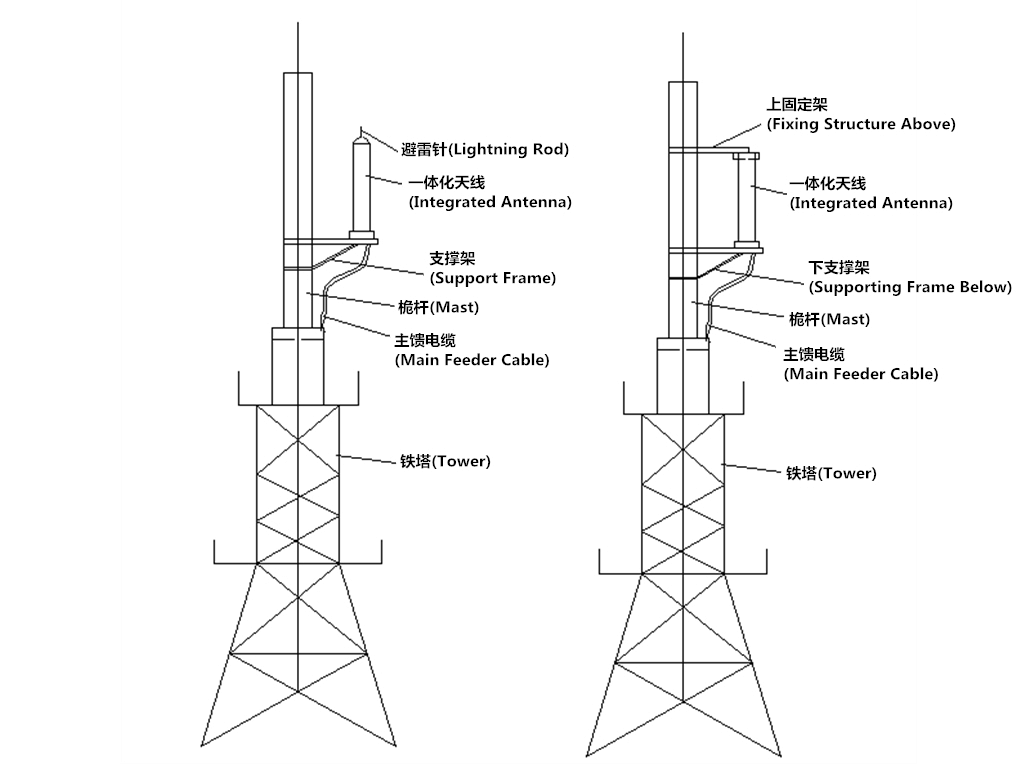

The schematic diagram of an integrated wideband vertical polarization antenna mounted on the side of the mast

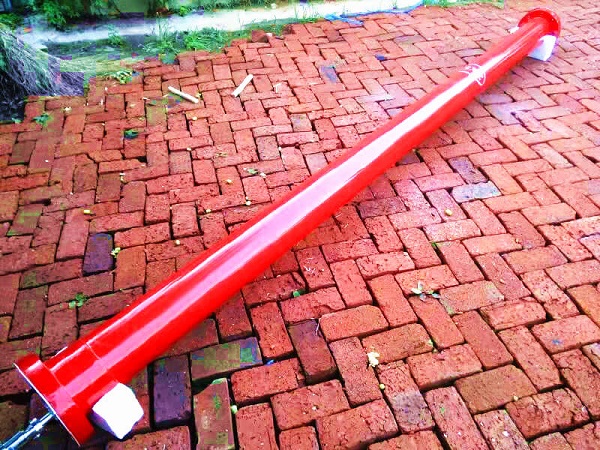

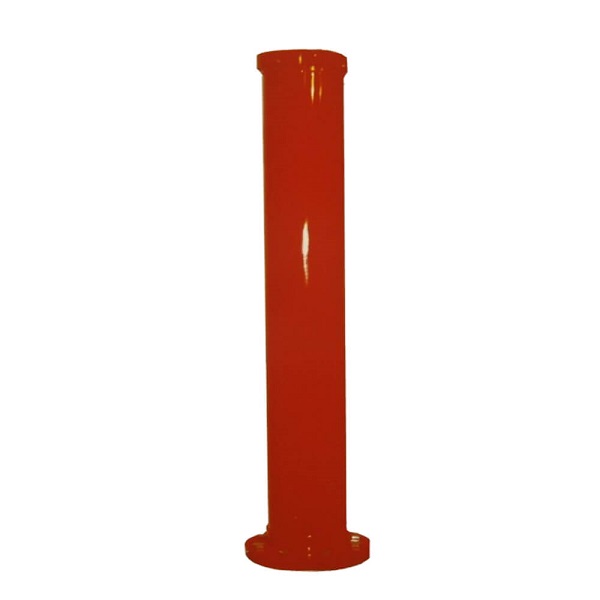

Product display
