5KW FM Radio Transmitter

Technical Specifications
1.Frequency Range：87.0MHz~108 MHz
2.Frequency Setting step：10KHz
3.CarrierFrequencyprecision：200Hz
4.Residual Wave Radiation：70dBc
5.AnalogaudioInputImpedance：600Ω
6.Balance AES/EBU digital audio input impedance：110Ω, Balance
7.Separation：>50dB,30Hz~15KHz
8.Audio Input Level：-10dBm~+10dBm, step 0.01dB
9.S/N：>75dB(1kHz,100%modulation)
10.AudioHarmonicDistortion：<0.1%
11.Audioresponse：0.1dB(10Hz~15KHz)
12.Output Load Impedance：50Ω
13.Output Power：0W~5KW
14.Pre-emphasis：0μS, 50μS, 75μS
15.Deviation：±75kHz
16.Pilot Frequency：19 kHz; 0.5Hz
17.RF Output Interface：1-5/8'
18.Size：750mm X480mmX220mm
19.Weight：50KG

YXHT-5KW is an excellent FM stereo transmitter for professional radio stations. It is reliable and

high Performance. compact design. It uses Digital Signal Process (DDS+DSP)Technology, high

reliability switch power supply modules. It consists of center control module, 6pcs 1KW FM

amplifier modules, a perfect BPF.

Features:

1.Hearing similar to CD

2.The 5KW Power Amplifier is Installed in one 5U rack.

3.6pcs 1KW RF power modules inside. Total output power is extremely stable thanks to AGC(Automatic Gain Control).

4.Compact Design, small size

5.Digital 30W exciters (DSP+DDS).

6.Analog and digital (AES/EBU) audio signal input directly.

7.Intelligent protection functions by centre control module, like over PF, over SWR, over Temp,Over V, Over I.

8.TCP/IP/RS232 Communication interface ready for remote system.

As quality assurance, YXHT Provides 6 YEAR warranty for this professional broadcast transmitter, you’ll have no worries to use it for the radio station.

FREQUENTLY APPLICABLE USES:

1). Community Radio stations

2). LPFM radio stations

3). City radio stations

4). Christian Church radio stations

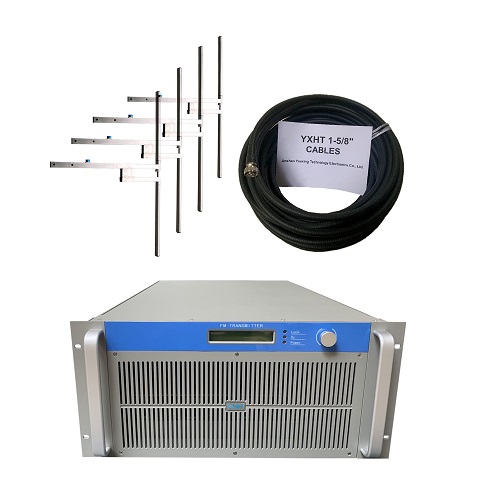

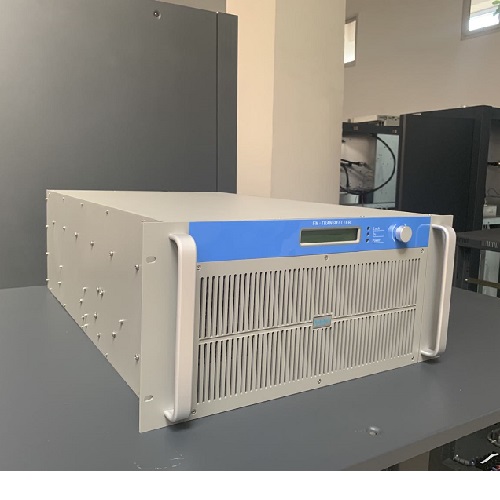

Product display
