3KW FM Radio Transmitter

Technical Specifications
1. Frequency Range： 87.0MHz~108.0MHz
2. Frequency Setting step： 10KHz
3. Carrier Frequency precision： ±200Hz
4. Residual Wave Radiation： ≥67dBc
5. Audio Input Impedance： 600Ω, Balance (for analog)110Ω, Balance (for digital AES/EBU)
6. Stereo Separation： 50dB(30Hz~15KHz)
7. Audio Input Level： ±10dBm,step 0.01dB
8. S/N： ≥75dB(30H~15kHz,100%)
9. Audio Harmonic Distortion： <0.1%
10. Audio response： ±0.1dB(30Hz~15KHz)
11. Output Load Impedance： 50Ω
12. Output Power： 0~3000W adjustable
13. Pre-emphasis： 0μS,50μS,75μS
14. Deviation： ±75kHz
15. Pilot Frequency： 19 kHz±1Hz Pilot Signal Modulation：8%~10%
16. Sub-carrier Suppression： ≥65dB
17. RF Output Interface： 7/8' or 1-5/8' Flange
18. Size：750mm X480mmX220mm
19. Weight：35KG

Features:

1.Hearing similar to CD

2.The 3KW Power Amplifier is Installed in one 5U rack.

3.4pcs 1KW RF power modules inside. Total output power is extremely stable thanks to AGC (Automatic Gain Control)

4.Compact Design, small size

5.Digital 30W exciters (DSP+DDS).

6.Analog and digital (AES/EBU) audio signal input directly.

7.Intelligent protection functions by centre control module, like over PF, over SWR, over Temp, Over V, Over I.

8.TCP/IP/RS232 Communication interface ready for remote system.

As quality assurance, YXHT Provides 6 YEAR warranty for this professional broadcast transmitter, you’ll have no worries to use it for the radio station.

YXHT-3KW is an excellent FM stereo transmitter for professional radio stations. It is reliable and high Performance. compact design. It uses Digital Signal Process (DDS+DSP)Technology, high reliability switch power supply modules. It consists of center control module, 4pcs 1KW FM amplifier modules, a perfect BPF.

FREQUENTLY APPLICABLE USES:

1). Community Radio stations

2). LPFM radio stations

3). City radio stations

4). Christian Church radio stations

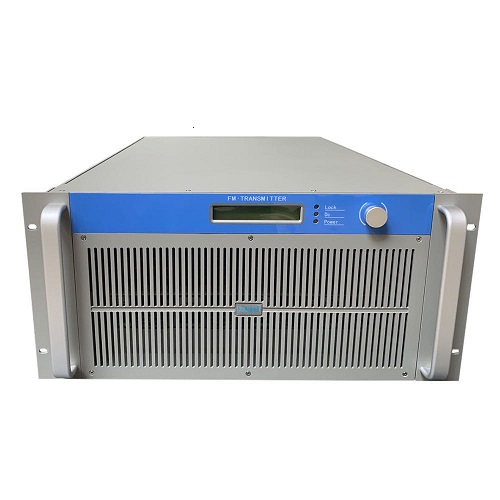

Product display
