10KW FM Broadcast Transmitter



Shipping Method: DHL, FedEx, UPS, EMS, By Sea, By Air
Payment: TT(Bank Transfer), Western Union, Paypal, Payoneer
Order
Product detailsTechnical manual

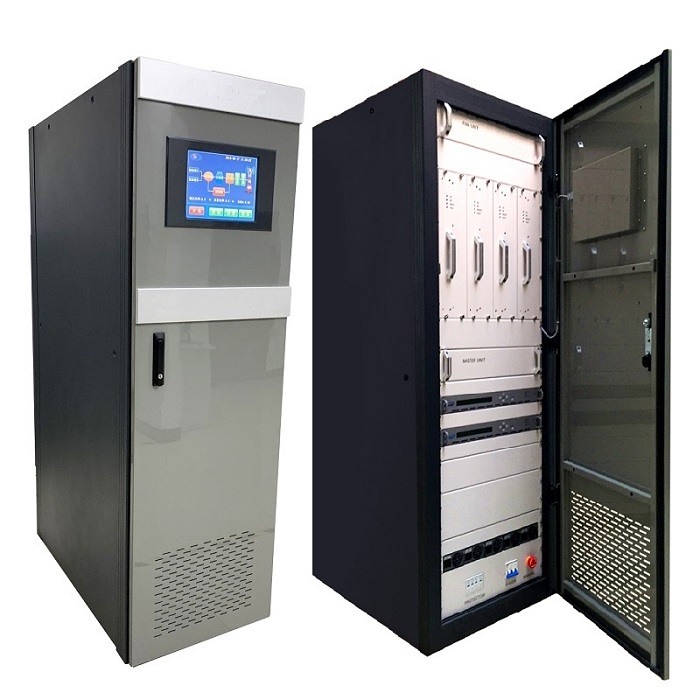

10KW FM Broadcast Transmitter
Technical Specifications
1. Frequency Range: 87.0MHz~108 MHz
2. Frequency Setting step:10KHz
3. Carrier Frequency precision: 200Hz
4. Residual Wave Radiation: 75dBc
5. Analog audio lnput lmpedance:600Ω,Balance AES/EBUdigital audio input impedance:110Ω,Balance
6. Separation: >50dB,30Hz~15KHz
7. Audio Input Level: -10dBm~+10dBm,step 0.01dB
8. S/N:>75dB(1kHz,100%modulation)
9. Audio Harmonic Distortion: <0.1%
10. Audioresponse:=0.1dB(10Hz~15KHz)
11. Output Load Impedance: 50
12. Output Power:0W~10KW
13. Pre-emphasis: 0μS, 50μS, 75μS
14. Deviation:19 kHz; 1Hz
15. Pilot Frequency: 19 kHz; 1Hz
16. RF Output Interface: 3+1/8'
17.Size:105cmX57cmX156cm
18.Weight: 150KG




As quality assurance, YXHT Provides 6 YEAR warranty for this professional broadcast transmitter, you’ll have no worries to use it for the radio station.



FREQUENTLY APPLICABLE USES:



1). Community Radio stations

2). LPFM radio stations

3). City radio stations

4). Christian Church radio stations

 Qveriew

1. Four units 3KW hot-plug RF power modules. Total output power is extremely stable thanks to AGC(Automatic GainControl).

2. 102.5KVA switched power supply modules working parallel.

3. 4-way High efficiency combiner with patent technology.

4. TwoTwo All-digital 30W exciters with switcher used to drive each module directly.?

5. Analog and digital(AES/EBU) audio signal input directly.

6. 12.1-inch Color LCD with touch panel displys all the parameters in real time.

7. Five kinds of protect method by MCU, like over Pf,over SWR,over Temp,Voltage,Current.

8. Real hot-plug structure,the modules can be repairing at non-stop condition.

9. RS232/RS485 Communication interface ready for remote system.

Product display
