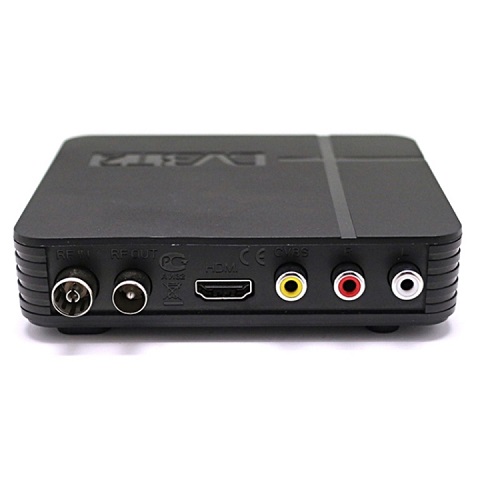

About the product Front Panel: 1. USB 2.0 embedded one host, 4-digit LED display on front panel, red LED Standby, green LED Lock 2. Panel KEY, POWER, CH+ ,CH-, Rear Panel Tuner RF input connector 3. IEC-162-2( Female) Tuner RF Loop through connector 4. IEC-162-2( Male)HDMI V1.3/V1.4 5. RCA CVBS AL AR Connector x1 6. Ypbpr RCAx1, Coaxial x1 Demodulation: 1. Terrisal Receiver Standard: DVB-T2/T(EN_302755 V1.3.1/EN 300744) 2. Input RF Frequency: 48~866MHZ 3. Bandwidth: 6MHz, 7MHz, 8MHz Constellation: 1. QPSK 16-QAM 64-QAM and 256-QAM 2. FEC1/2, 3/5, 2/3, 3/4, 4/5, 5/6 Guard Interval: 1. 1/128, 1/32, 1/16, 19/256, 1/8, 19/128, 1/4 2. FFT Mode2K/8K/32K Support: 1. Support Single and multiple PLPS 2. Input level-83 - 5dBm
Sortware Features 1. Fully comply with DVB-T/T2 and H.264, MPEG-4, MPEG-2 Standard 2. The maximum speed of the traffic flow of at least 50 Mbit / sec 3. Support 3D interface 4. Sleep timer 5. Support teletext/subtitle/muti-language 6. Powerful and highly effective 7-day EPG function 7. AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen 8. USB 2.0 for PVR, TIMESHIFT, software upgrade and media files playback 9. Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P
