Technical Specifications
1. Working frequency：UHF 13-48 channel arbitrary choice
2. Channel bandwidth： 8MHz
3. Output power： 1KW
4. Output impedance： 50Ω
5. Output interface：Φ40
6. Output load return loss：Normal operation：-32dB, Allowed operation：-20dB
7. Power input level： 0dBm
8. Amplifier input impedance： 50Ω
9. Amplifier input interface： L16
10.Useless transmission： ≤-60dB
11.Band fluctuations：±0.5dB
12.Band shoulder：better than 36dB
13.MER： better than 30dB
14.Size：1860mm×560mm×900
15.Weight： 150KG



Features:

Supported Standards DVB-T,DVB-T2,DVB-H,DTMB,ATSC,ISDB-T

All solid-state digital TV transmitter, bandwidth is 6-8MHZ.

Pre-distortion correction, dual-exciters switch automatically.

High Linearity LDMOS Power Amplifier, high-gain power amplifier module, parallel switching power supply, it is a high-efficiency transmitter.

Telemetry and remote control by computer, web-based interface and software.

Good man-machine interface, full automatic switch the machine with one key.

Multi protection (over voltage, over current, overheating, large standing-wave ratio ...)high reliability, 24 hours continuous works.

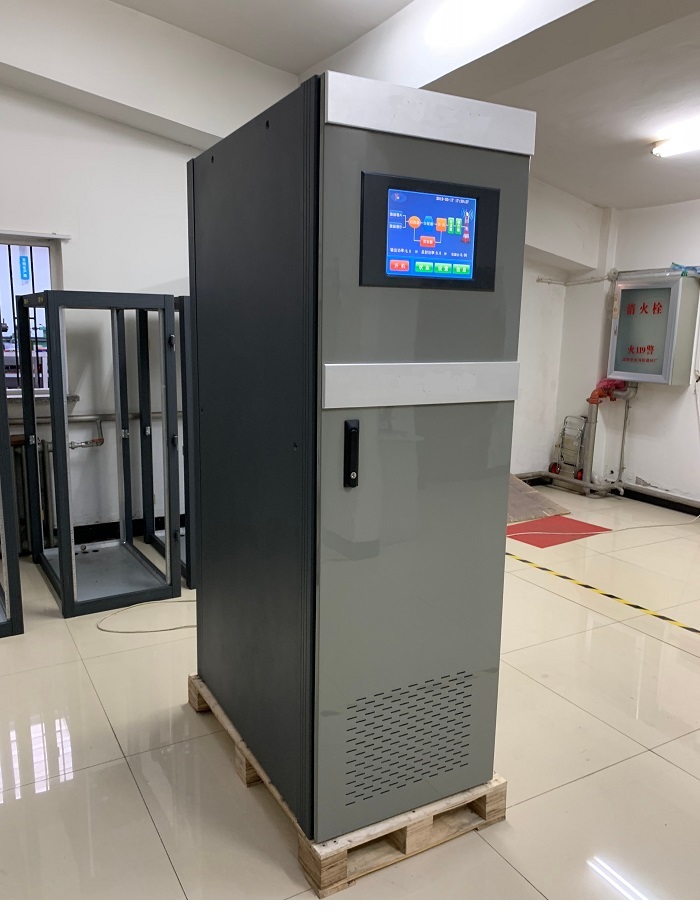

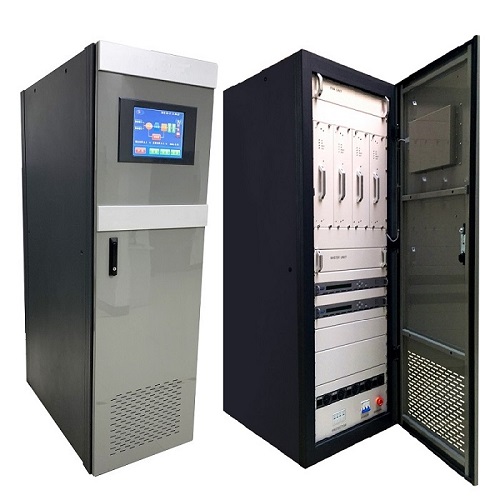

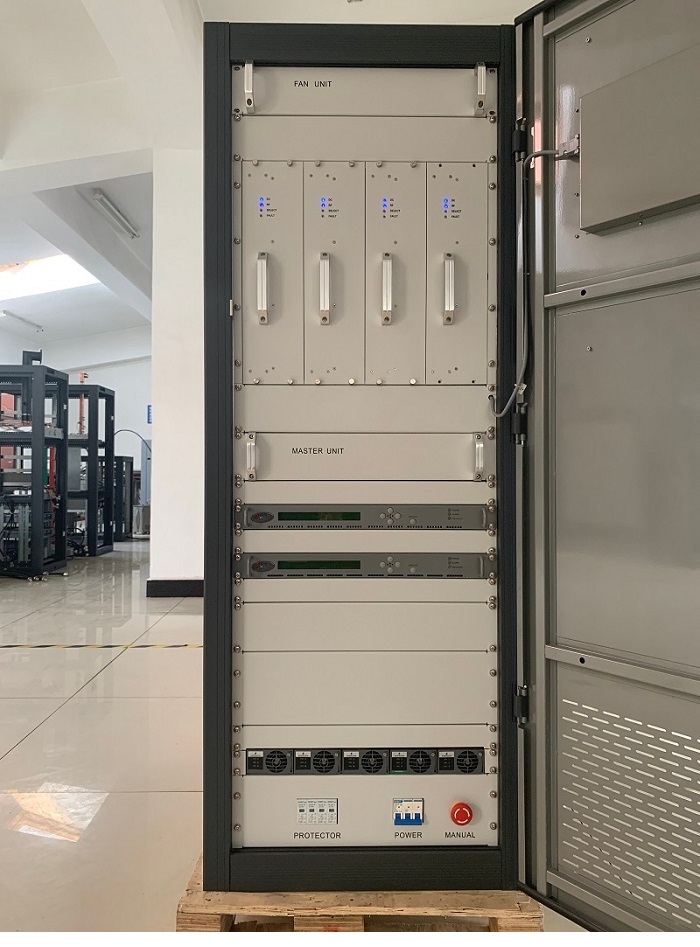

Professional High Reliability Digital 1KW TV Transmitter

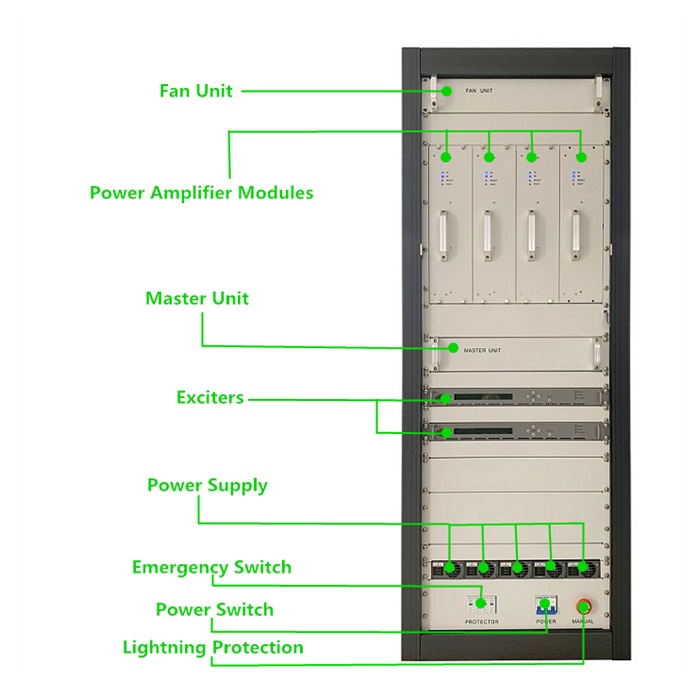

Module design
MCU controlled
RS485/232 interface
Professional performance
12.1-inch color LCD with touch panel
High reliability
low price
